Adastra UM90 1 channels 100 - 18000 Hz Black
€229.08
€192.50
90W, 300 x 210 x 44mm, 3.02kg, 170-264V, 50Hz, Class D, 100Hz - 18kHz, 80dB , 75dB
Availability:
In stock
Only 5 left
SKU
953.179UK
- Ultra compact form factor
- Efficient class D amplifier design
- Internal USB/FM/BT audio player
- 100V line or 8 Ohms operation
| SKU | 953.179UK |
|---|---|
| EAN | 5015972216606 |
| Manufacturer | Adastra |
| Availability | In Stock |
Write Your Own Review
UM Series Ultra Compact Mixer-Amplifiers 100V 100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.
| Audio | |
|---|---|
| Frequency range | 100 - 18000 Hz |
| Microphone Signal-to-Noise Ratio (SNR) | 75 dB |
| Line Signal-to-Noise Ratio (SNR) | 80 dB |
| Channels quantity | 1 channels |
| Amplifier included | Yes |
| Amplifier class | D |
| Amplifier output power | 90 W |
| Inputs | |
| Maximum input level | 100 V |
| Input impedance | 1000 Ω |
| Outputs | |
| Total Harmonic Distortion (THD) | 0.4% |
| Output impedance | 8 Ω |
| Ports & interfaces | |
|---|---|
| AUX out ports | 1 |
| Number of microphone inputs | 1 |
| Microphone in | Yes |
| Line inputs (RCA) | 2 |
| AUX in | Yes |
| Technical details | |
| Rack capacity | 1U |
| USB port | Yes |
| On/off switch | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Power | |
| AC input voltage | 170-264 V |
| AC input frequency | 50 Hz |
| Phantom power | 24 V |
| Weight & dimensions | |
| Width | 300 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 3.02 kg |
You may also be interested in
| Product |
Popular
Adastra UM90 1 channels 100 - 18000 Hz...
€229.08
€192.50
|
Bestseller
Adastra ML622 8 channels 10 - 23000 Hz...
€147.26
€123.75
|
Recommended
Adastra DM-8 1 channels Black
€163.63
€137.50
|
New

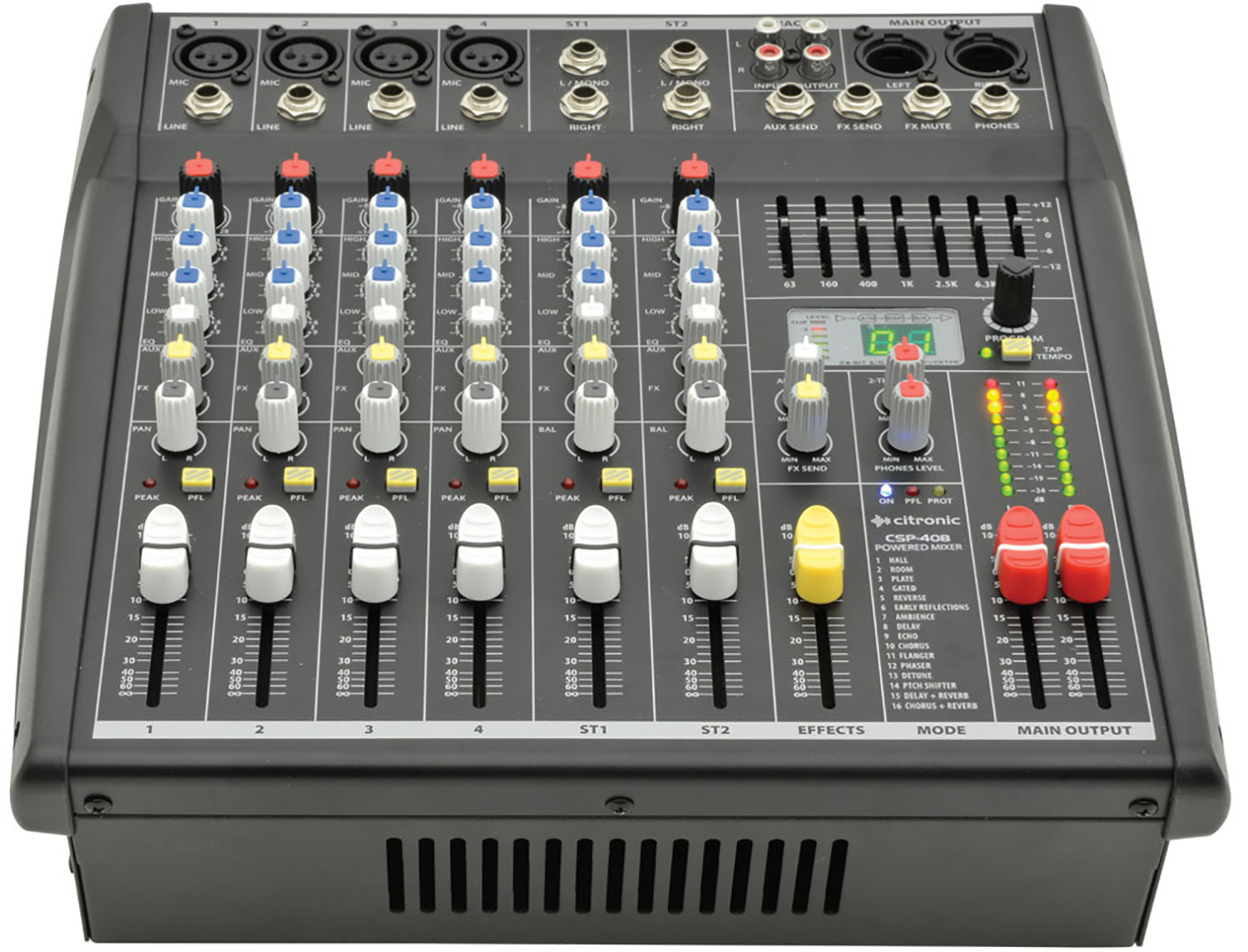

Citronic 170.841UK audio mixer 20 - 30...
