Cudy SM100MA-05 network transceiver module Copper 155 Mbit/s SFP 850 nm
€12.97
€10.90
155Mb/s SFP, 850nm, MM, 0.55km, 14.5dB
Availability:
In stock
Only 10 left
SKU
SM100MA-05
| SKU | SM100MA-05 |
|---|---|
| EAN | 6971690790653 |
| Manufacturer | Cudy |
| Availability | In Stock |
Write Your Own Review
SM100MA-05 Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10base-T / 100base-Tx standards as specified in IEEE Std 802.3. SFP-100BASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, SWITCH IC be reset.
| Performance | |
|---|---|
| SFP transceiver type | Copper |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Networking standards | IEEE 802.3 |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Copper ethernet cabling technology | 10BASE, 100BASE |
| Product colour | Silver |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
| Features | |
| Product colour | Silver |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
| Power | |
| Maximum voltage | 4 V |
| Input voltage | 3.47 V |
| Power consumption (typical) | 1 W |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Network | |
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3 |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Hot-Plug support | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
You may also be interested in
| Product |
Cudy SM100MA-05 network transceiver mo...
€12.97
€10.90
|
Cudy SM100GSA-20 network transceiver m...
€12.97
€10.90
|

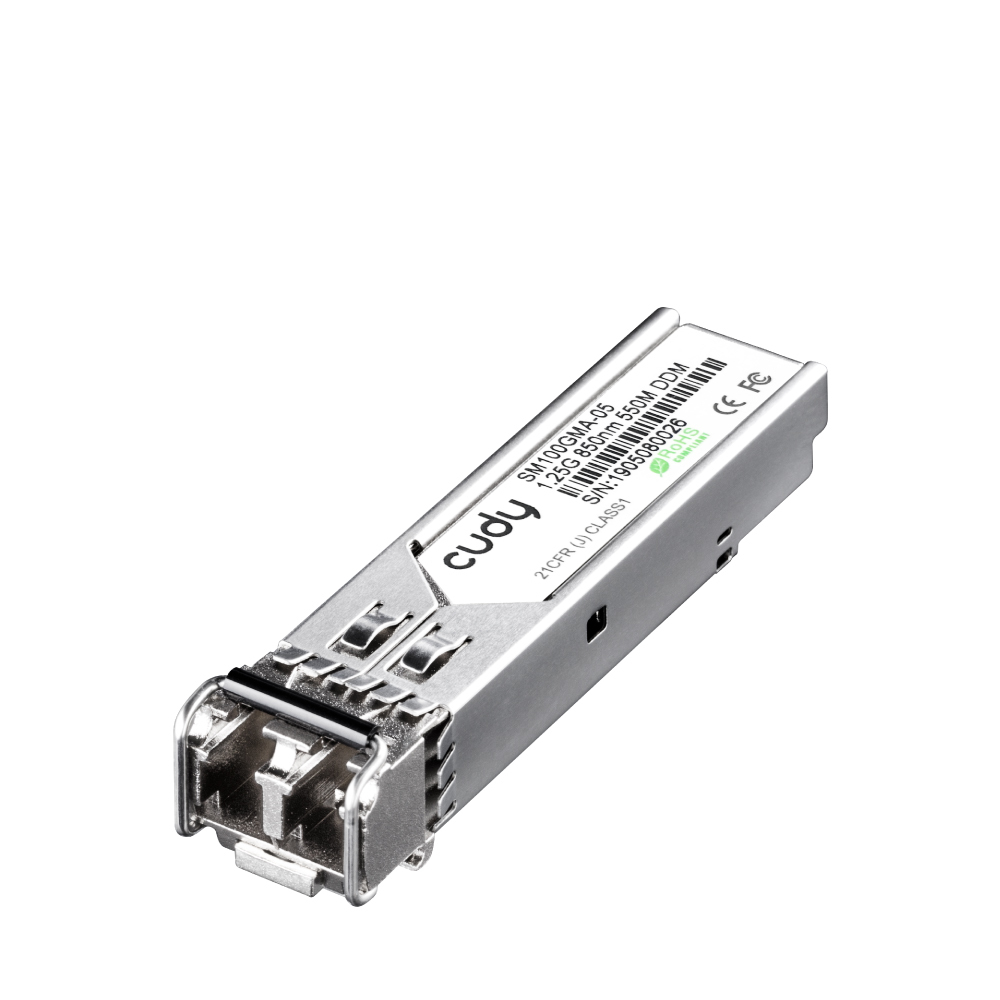

Cudy SM100GMA-05 network transceiver m...
