| Performance | |
|---|---|
| Video input channels | 8 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264, H.264+, H.265, MPEG4 |
| Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP |
| Throughput data rate | 160 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Number of fans | 1 fan(s) |
| Number of users | 64 user(s) |
| Operating system installed | Embedded LINUX |
| Networking standards | IEEE 802.3at |
| Video recording modes | 720p, 1080p |
| Wireless LAN features | |
| Wi-Fi | No |
| Hard drive | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 12 TB |
| HDD interface | Serial ATA |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Storage | |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 12 TB |
| HDD interface | Serial ATA |
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 9 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 1 |
| HDMI output | Yes |
| Supported network protocols | TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP |
| Audio RCA inputs | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Audio RCA outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Networking standards | IEEE 802.3at |
| Features | |
| Rack mounting | Yes |
| LED indicators | Alarm, HDD, Power |
| Certification | CE, FCC, ISO9001, ISO14001, uL |
| On/off switch | Yes |
| Product colour | Black |
| Country of origin | China |
| Compatible products | Onvif camera |
| Power | |
|---|---|
| Power consumption (typical) | 180 W |
| AC input voltage | 100 - 230 V |
| System requirements | |
| Browser supported | Internet Explorer 9+ |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 315 mm |
| Depth | 52 mm |
| Height | 385 mm |
| Weight | 3 kg |
| Package width | 435 mm |
| Package depth | 450 mm |
| Package height | 387 mm |
| Package weight | 3.23 kg |
| Package type | Box |
| Packaging content | |
| CD manual | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Logistics data | |
| Master (outer) case width | 548 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 412 mm |
| Master (outer) case gross weight | 14.1 kg |
| Products per master (outer) case | 4 pc(s) |
| Product |
Popular
LevelOne GEMINI 8-Channel PoE Network...
€462.77
€388.88
|
Recommended
LevelOne HUBBLE 4-Channel Network Vide...
€656.64
€551.80
|
LevelOne GEMINI 4-Channel PoE Network...
€398.57
€334.93
|
Bestseller
Ubiquiti UNVR-Pro 2U Grey
€598.44
€502.89
|

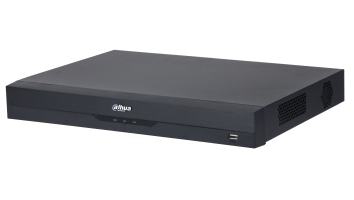

Dahua Technology NVR5232-EI network vi...
