Brother ADS-4300N scanner ADF scanner 600 x 600 DPI A4 Black, White
€503.44
€423.06
ADF, 40 ppm, 600 x 600/1200 x 1200 dpi, LAN, 59dB, USB 3.0
Availability:
In stock
Only 45 left
SKU
ADS4300NRE1
- Scan up to 40 pages per minute
- 2-sided scan up to 40 pages per minute
- 80 sheet Automatic Document Feeder (ADF)
- Wired connectivity
- SuperSpeed USB3.0
- Scan directly to USB host
| Scanner type | ADF scanner |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Built-in display | No |
| SKU | ADS4300NRE1 |
| EAN | 4977766814638 |
| Manufacturer | Brother |
| Availability | In Stock |
| Product Manuals (HTML) |
View Manual |
| PDF URLs |
View PDF View PDF |
Write Your Own Review
Brother ScanEssentials
Our ScanEssentials software provides you with additional features which you can tailor to your business. For added security, you can set up passwords and protect your workflows, with the option to save your documents in a variety of formats.
The metadata function can also read barcodes or specific strings of text to easily facilitate the separation and file naming of documents.

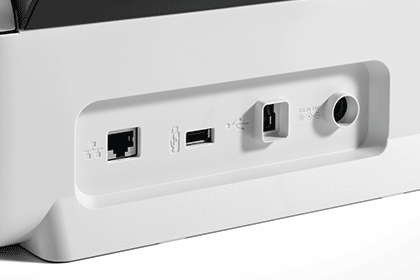

Advanced connectivity
With USB3.0 and USB host, you can securely scan documents without the need for a PC.

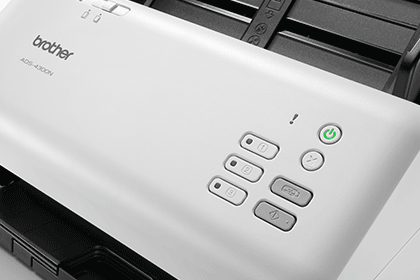

Simple and intuitive
Design simplicity means it's easy to set up and easy to use.

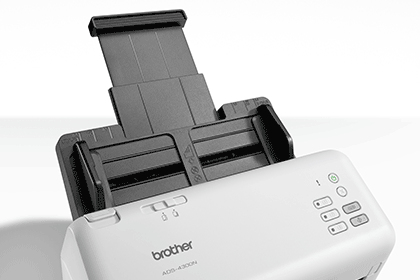

Fast and reliable
With an in-built ultrasonic multifeed to eliminate misfeeds, the ADS-4300N has a large 80 sheet ADF capacity and rapidly scans up to 40 pages per minute. The separation switch enables very thick and thin documents, plastic cards and crumpled paper to smoothly feed through with ease.
Advanced image capture and processing
Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.
The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.
Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
With high-speed wired connectivity. Great choice for scanning documents to the network and collaborating with colleagues. Ideal for shared use in the office.
| Scanning | |
|---|---|
| Output greyscale depth | 8 bit |
| Optical scanning resolution | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 bit |
| Output colour depth | 24 bit |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Duplex ADF scan speed (b/w, A4) | 80 ipm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
| Sensor type | Dual CIS |
| Light source | LED |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 6000 pages |
| Scan to | FTP, Image, PC, SMB, USB |
| Design | |
| Built-in display | No |
| Scanner type | ADF scanner |
| Product colour | Black, White |
| Control type | Buttons |
| Performance | |
| Sensor type | Dual CIS |
| Light source | LED |
| Scan file formats | JPEG, PDF, TIFF |
| Daily duty cycle (max) | 6000 pages |
| Scan to | FTP, Image, PC, SMB, USB |
| Scan drivers | ICA, SANE, TWAIN, WIA |
| Supported network protocols | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Scanning noise level | 59 dB |
| Maximum duty cycle | 120000 pages per month |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 80 sheets |
| Paper handling | |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 5 m |
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper |
| Auto Document Feeder (ADF) media weight | 40 - 200 g/m² |
| Card thickness (max) | 1.1 mm |
| Paper tray media weight | 40 - 200 g/m² |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Supported network protocols (IPv6) | RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Security algorithms | EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS |
| Ethernet LAN | Yes |
| Supported network protocols | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP, RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Supported network protocols (IPv4) | DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP |
| IPv6 support | Yes |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Scan drivers | ICA, SANE, TWAIN, WIA |
| Sound emission | |
| Scanning noise level | 59 dB |
| Power | |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 6.8 W |
| Power consumption (off) | 0.1 W |
| Power supply type | AC |
| Power consumption (sleep) | 1.7 W |
| Output voltage | 24 V |
| Output current | 1.9 A |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
|---|---|
| Width | 243 mm |
| Depth | 320 mm |
| Height | 391 mm |
| Weight | 3.09 kg |
| Package depth | 320 mm |
| Package weight | 3.74 kg |
| Package width | 391 mm |
| Package height | 243 mm |
| Packaging data | |
| Package depth | 320 mm |
| Package weight | 3.74 kg |
| Package width | 391 mm |
| Package height | 243 mm |
| Quantity per pack | 1 pc(s) |
| Products per pallet | 40 pc(s) |
| Packaging content | |
| Cables included | AC, USB |
| Technical details | |
| Maximum scan width | 21.6 cm |
| Pallet gross height | 17.8 cm |
| Security algorithms | EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS |
| Scanner type | ADF scanner |
| Maximum duty cycle | 120000 pages per month |
| Country of origin | China |
| Product colour | Black, White |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 40 pc(s) |
| Supported network protocols (IPv6) | RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6 |
| Sustainability compliance | Yes |
| Master (outer) cases per pallet layer | 8 pc(s) |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Pallet type | 800 x 1200 mm |
| Features | |
| Country of origin | China |
| Sustainability | |
| Sustainability compliance | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | GS Mark ISIS WHQL KofaxTM 5,10 VRS Elite 5.2.0 Kofax Express 3.3.0 |
| Other features | |
| Certification | GS Mark ISIS WHQL KofaxTM 5,10 VRS Elite 5.2.0 Kofax Express 3.3.0 |
| Compliance certificates | RoHS |
| Spare part retention | 5 year(s) |
| Pallet gross weight | 166.4 kg |
| Security algorithms | EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS |
| Ethernet LAN | Yes |
| Scanner type | ADF scanner |
| Country of origin | China |
| Products per pallet | 40 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 40 pc(s) |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Pallet gross weight | 166.4 kg |
| Country of origin | China |
| Products per pallet | 40 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet | 40 pc(s) |
| Quantity per pack | 1 pc(s) |
| Pallet gross height | 17.8 cm |
| Master (outer) cases per pallet layer | 8 pc(s) |
| Harmonized System (HS) code | 84716070 |
