Mercusys 5-Port 10/100Mbps Desktop Switch
€11.28
€9.48
5x RJ-45 10/100Mbps, 1Gbps, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, auto-MDI/MDIX, 82 x 49 x 21 mm
Availability:
In stock
Only 47 left
SKU
MS105
- Five 10/100Mbps auto-negotiation RJ45 ports with auto MDI/MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
| Power over ethernet | No |
|---|---|
| Stackable | No |
| Ports type | Fast Ethernet (10/100) |
| Ports quantity | 5 |
| SKU | MS105 |
| EAN | 0849439000362 |
| Manufacturer | MERCUSYS |
| Availability | In Stock |
Write Your Own Review
Easy Wired Network Expansion
5-Port 10/100Mbps Desktop Switch
Sleek,Ultra-Compact Design
About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.
Expand Ethernet Network
With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.
Ease of Use
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
5-Port 10/100Mbps Desktop Switch
Sleek,Ultra-Compact Design
About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.
Expand Ethernet Network
With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.
Ease of Use
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 2000 |
| Packet buffer memory | 0.768 MB |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Product colour | White |
| Stackable | No |
| LED indicators | LAN, Power |
| Rack mounting | No |
| Certification | CE, RoHS |
| Power | |
| Power supply included | Yes |
| Input voltage | 5 V |
| Input current | 0.6 A |
| Power source | DC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 82 mm |
| Depth | 49 mm |
| Height | 21 mm |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package width | 87 mm |
| Package depth | 80 mm |
| Package height | 57 mm |
| Package weight | 140 g |
| Quick start guide | Yes |
| Performance | |
| Packet buffer memory | 0.768 MB |
| Stackable | No |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | White |
| Stackable | No |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 0.768 MB |
| Certificates | |
| Certification | CE, RoHS |
| Indication | |
| LED indicators | LAN, Power |
| Other features | |
| Input voltage | 5 V |
You may also be interested in
| Product |
Popular
Mercusys 5-Port 10/100Mbps Desktop Swi...
€11.28
€9.48
|
Bestseller
TP-Link TL-SF1005D network switch Unma...
€16.35
€13.74
|
Recommended
TP-Link TL-SF1008D network switch Unma...
€25.06
€21.06
|
Hot Product
Mercusys 5-Port 10/100/1,000 Mbps Desk...
€14.95
€12.56
|
Gembird NSW-G5-01 network switch Unman...
€16.47
€13.84
|
New

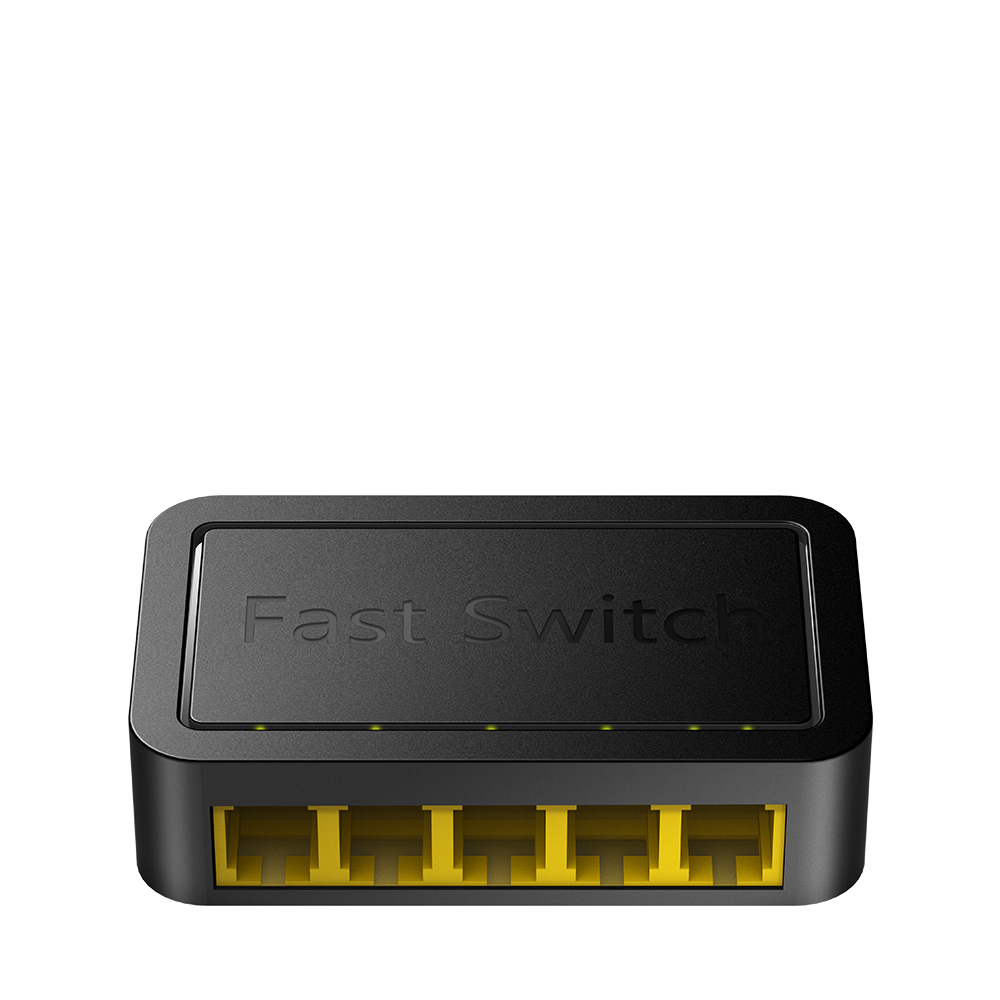

Cudy FS105D network switch Fast Ethern...
