Tenda SG105M network switch Gigabit Ethernet (10/100/1000) Black
€14.11
€11.86
5 x 10/100/1000 Mbps, auto MDI/MDIX, IEEE 802.3/u/x/ab, CDMA/CD, EU
Availability:
In stock
Only 49 left
SKU
SG105M
| Power over ethernet | No |
|---|---|
| Stackable | No |
| Ports type | Gigabit Ethernet (10/100/1000) |
| Ports quantity | 5 |
| SKU | SG105M |
| EAN | 0885397276036 |
| Manufacturer | Tenda |
| Availability | In Stock |
Write Your Own Review
All Gigabit Ports, High-speed Network
5-Port Gigabit Ethernet Switch SG105M
Full Gigabit Port, Full Speed Connection
Equipped with 5*GE, the transmission rate of up to 2000Mbps in full duplex mode, with higher bandwidth processing capacity, can effectively solve the problems of video delay and picture loss in HD monitoring environment, easily loaded 400W HD surveillance cameras.
Small And Exquisite, Save More Space
82*52*22mm super mini body, smaller than a bank card. It also supports a wall mount and can be placed anywhere.
Plug And Play, Convenient Networking
Each port supports MDI/MDIX auto-flip. Plug in the networkcable to access the Internet, without unnecessary Settings, simple and convenient.
Wide Application
It is compatible with network devices such as surveillance cameras, computers, printers, smart TVs, and smart game consoles to better meet the networking requirements of enterprises and household environments.
5-Port Gigabit Ethernet Switch SG105M
Full Gigabit Port, Full Speed Connection
Equipped with 5*GE, the transmission rate of up to 2000Mbps in full duplex mode, with higher bandwidth processing capacity, can effectively solve the problems of video delay and picture loss in HD monitoring environment, easily loaded 400W HD surveillance cameras.
Small And Exquisite, Save More Space
82*52*22mm super mini body, smaller than a bank card. It also supports a wall mount and can be placed anywhere.
Plug And Play, Convenient Networking
Each port supports MDI/MDIX auto-flip. Plug in the networkcable to access the Internet, without unnecessary Settings, simple and convenient.
Wide Application
It is compatible with network devices such as surveillance cameras, computers, printers, smart TVs, and smart game consoles to better meet the networking requirements of enterprises and household environments.
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat5, Cat5e |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Jumbo frames | 15 |
| Packet buffer memory | 1 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.44 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| LED indicators | Activity, Link, Power |
| Housing material | Plastic |
| Rack mounting | No |
| Certification | CE, FCC, RoHS |
| Power | |
| Power consumption (max) | 1.7 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 82 mm |
| Depth | 52 mm |
| Height | 22 mm |
| Packaging content | |
| Quick start guide | Yes |
| Performance | |
| Packet buffer memory | 1 MB |
| Stackable | No |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Housing material | Plastic |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 1 MB |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Packaging data | |
| Quick start guide | Yes |
You may also be interested in
| Product |
Tenda SG105M network switch Gigabit Et...
€14.11
€11.86
|
Hot Product
TP-Link TL-SF1005D network switch Unma...
€16.35
€13.74
|
Bestseller

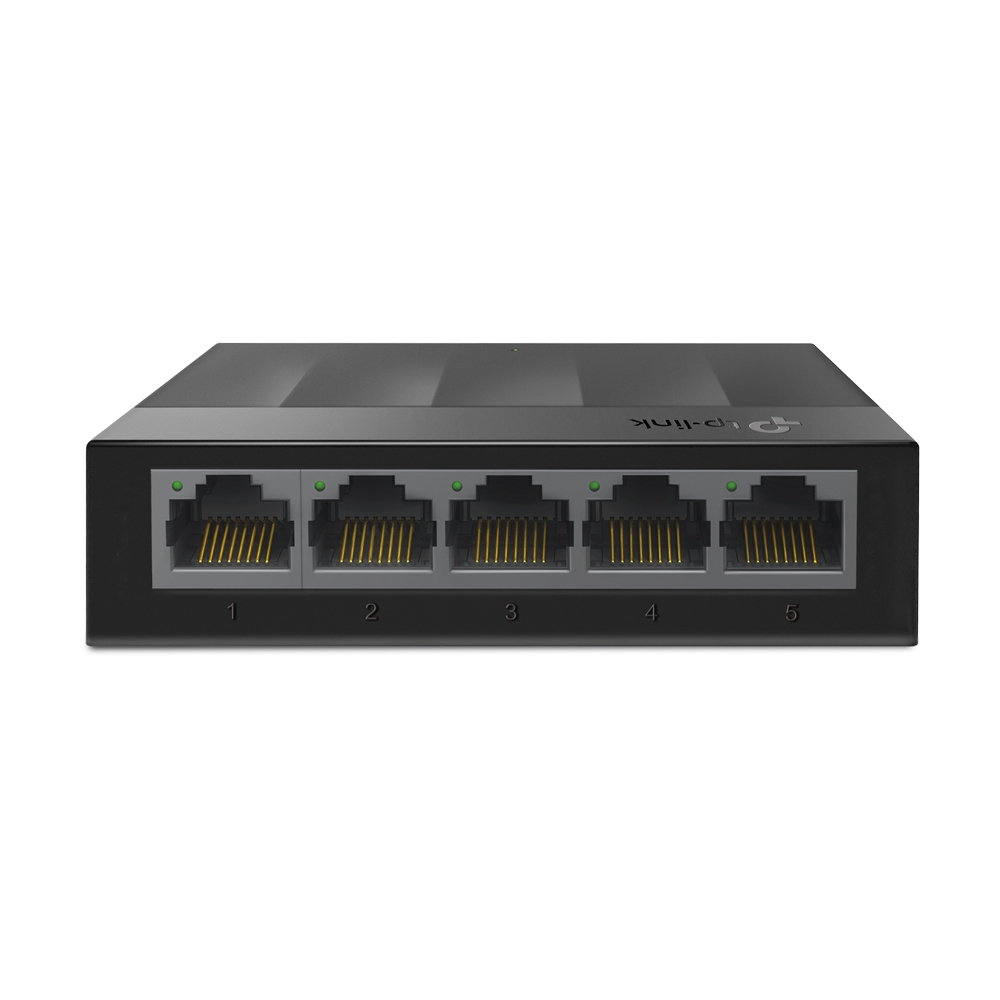

TP-Link LS1005G network switch Unmanag...
€19.04
€16.00
|
Popular
TP-Link TL-SF1008D network switch Unma...
€25.06
€21.06
|

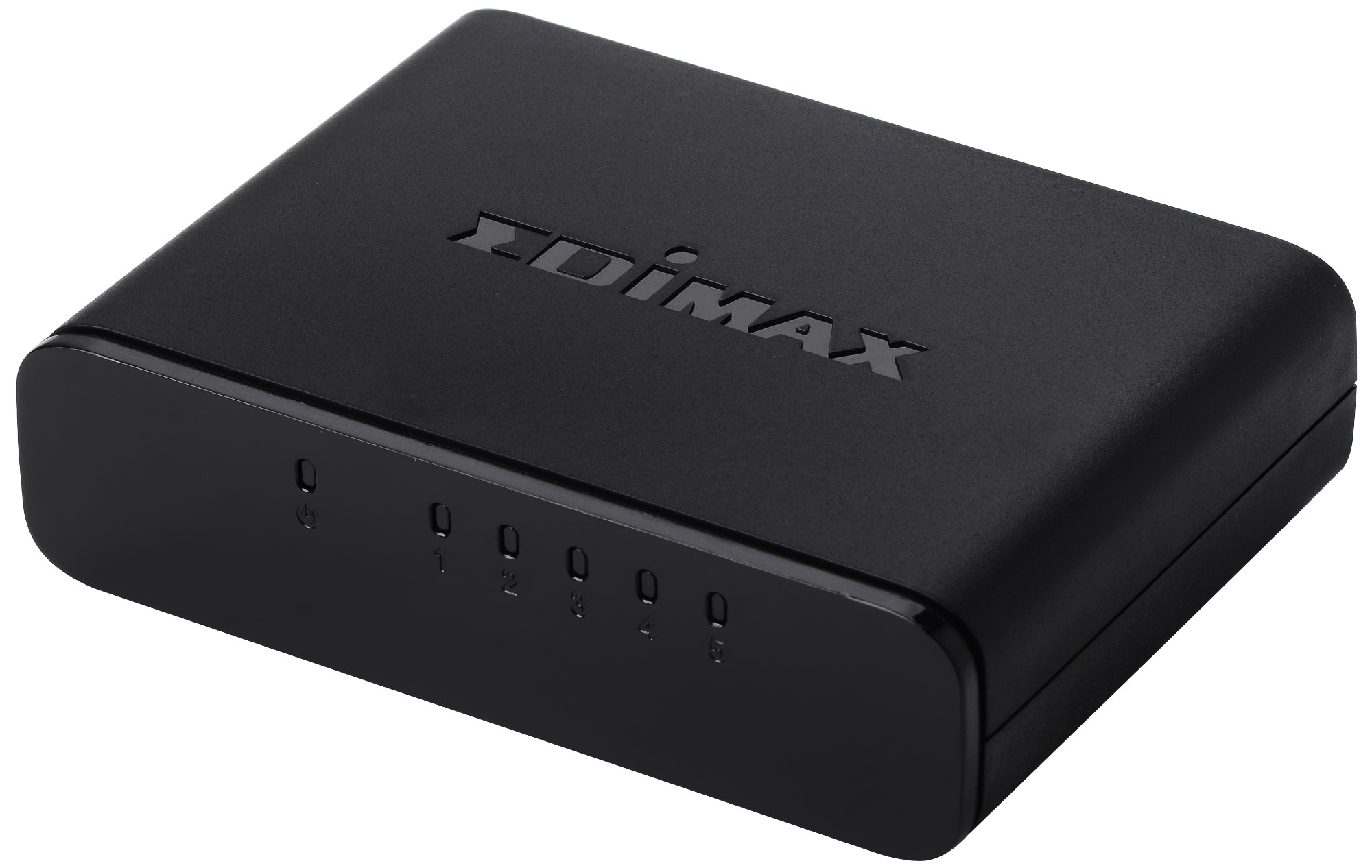

Edimax ES-3305P network switch Unmanag...
